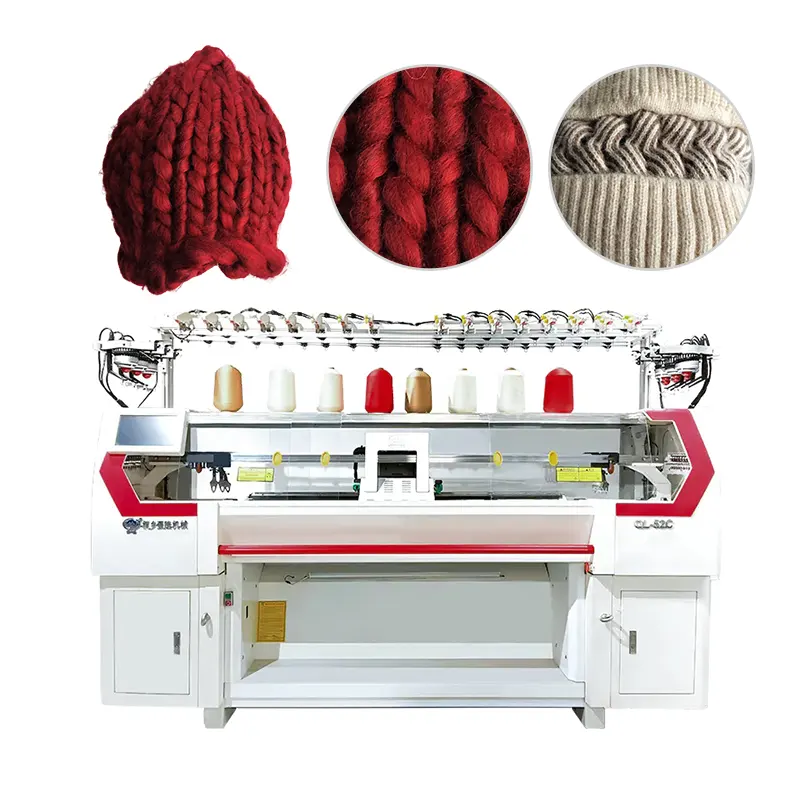

Signle Carriage Three System Computerized Flat Knitting Machine

The signle carriage three system computerized flat knitting machine is equipped with two kinds of automatic computer flat knitting machines, which are equipped with lifting bottom plate and no lifting bottom plate device. digital technology is adopted to realize the knitting functions of turning needle, lifting eye, picking hole, jacquard, bright drawing needle and other regular patterns. can be woven basic knitting fabric (four flat, single side, etc.) multi - color irregular jacquard, twisted weft knitting fabric. Welcome to buy signle carriage three system computerized flat knitting machine from Qianglong. Every request from customers is being replied within 24 hours.

Model:QL-3S52M

Send Inquiry    PDF Download

Product Description

Qianglong as one of the leading signle carriage three system computerized flat knitting machine manufacturers and suppliers in China. Over the years, we have always focused on the research in the field of signle carriage three system computerized flat knitting machine. With rich experience and professional technology, we have our own brand in China and have achieved good response. Our products have covered China, Europe, Africa, South America, Argentina and other multinational fields, and established senior cooperative relations with many buyers. Signle carriage three system computerized flat knitting machine , the series have two models: with comb and without comb, with digital technology, it could implement (he rib transfer, jacquard, needle narrowing and other weaving functions, also. i( can knit basic knitting(full needle, single side) the weft knitted fabric like cable stitch.


Product Parameter:

Model

QL-3S52M

Gauge

3.5G、517G、5G、7G、8G、9G、10G、12G、14G、16G、18G

Carriage

Single carriage three system

Knitting Range

52'760'780"/100"

Comb System

Zero finishing yarn comb system;regualar comb system

Knitting System

Single carriage three system, the adoption of digital technology to realize the horizontal machine turning needle, picking hole, lifting eye. no dotted line jacquard, four flat jacquard.Open stitch, dark sliich and other regular pattern weaving functions.

Knitting Speed

maximum speed is 1.8 m/s without load, with 128 sections of programming speed

Stitch Density

128 section electronic control, using subdivision technology; The stepping motor controls and adjusts the density, and the adjustable range is 0-650

Dynamic stitch

It is realized by high speed stepper motor, which supports the realization of multi-segment variable mesh control within a row of pattern, and the realization of a variety of fabric density in (he same lineWeaving, rich weaving patterns.

Transfer

Can be turned back and back at the same time, not affected by the nose direction, minute knitting.

Racking System

Motor driven, 1/2 and 1/4 needle in any position; Maximum 2 inches on one side.

Sinker

The stepping motor can adjust the movable sinker, which can be adjusted according(o different fabrics to achieve a variety of needling and needling effects

Quickly Turning

Intelligent switching braiding system improves machine weaving efficiency Intelligent switching braiding system improves machine weaving efficiency

Take-Up Device

128 sections of automatic control, time division adjustment, can be automatically identified according io the width of the pattern automatically adjust the tension, can meet a lot of local weavingThe pulling force requirement of the pattern makes the pulling force of the fabric evenly distributed and the strength is reliable.

Trimming device

Single/ Double scissors clip (optional)

Yarn feeder device

1.5g -I0G adopts roller feeding device to accurately control the tension of the yarn and ensure the consistency of the wholcwovcn piece quality; I2G-I8g adopts the yarn storage device to accurately control the tension of the yarn and ensure the consistency of the whole woven piece quality

Safety Device

The whole machine is covered to reduce noise and dust, infrared safety device, emergency stop device, cut off power device, indicator light alarm device.

Refueling device

Automatic refueling: control the refueling lime and frequency by setting the time. After the (ime is up. lubricate the long needle spring needle on the needle plate automatically io reduce (he wear of (he machine and increase iis service life.

Stop Motion

Automatic stop for yarn breaking, yarn knot, cloth winding, firing pin. number of pieces completed, overload, program error, etc

Control System

screen uses LCD industrial display, touch tcrecn graphical intcrficc. trinsmitsion mode uses USB and network. «hicb can be used to store a large number of pattern files, ind can be called out and used at any time according to production needs. Monitoring screen: it can display all kind* of working parameters and knincd mesh value, and ii can be adjusted at any time when the machine is running, which is convenient for operation and time saving to lhe greatest extent. Plate-making system and control system (software pan) SH upgrade is contcnicni. Support a variciy of flower format CNT. HCD. 000. etc. Support (or multi-language operating versions (Chinese. English. Russian,

Data Input

Input data through a USB flash drive or computer connection

Blackout Memory Function

Advanced CMOS technology is adopted to realize blackoui memory and call recovery weaving functions.

Network Function

High-speed ETHERNET network theoretically enables unlimited computer connection, data uploading and sharing, and real-time monitoring.

Power Supply Unit

Voltage: AC 22OV/38OV frequency: 50HZ/60HZ Power: 1.5KW

Size And Weight Of Machine

QL-3S52M: 3000*800* 1700MM Weight around:750KG


Spccificalions and Coonfigurations Should Be Subjected To The Contracl.


Product Application:

This applies to spun silk, synthetic filament, wool, acrylic, blending yarn and other materials, sweaters, scarfs, hats and clothing accessories.
