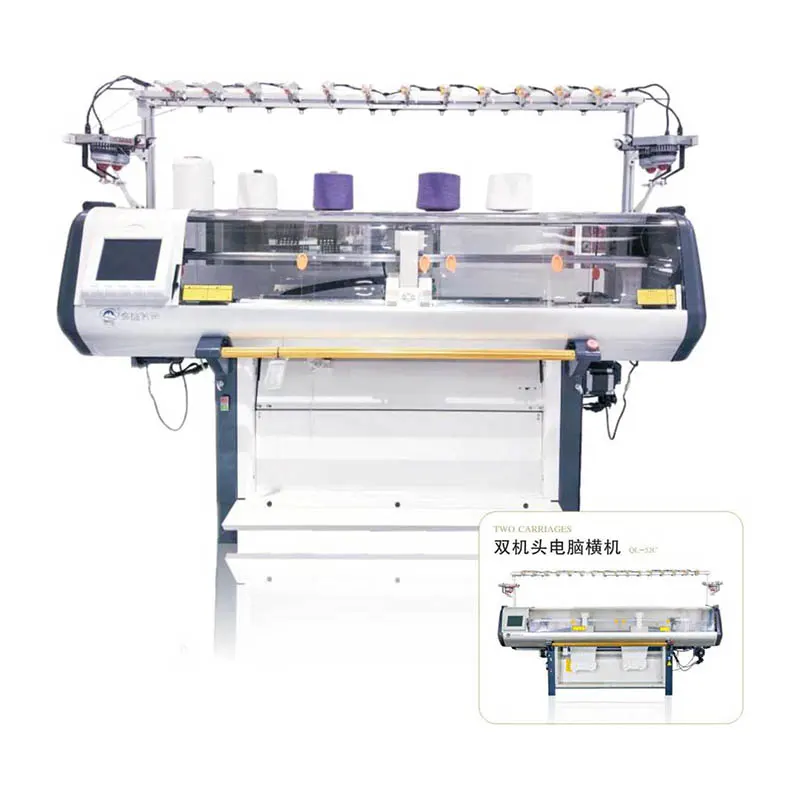

Double Carriage Single System Computerized Flat Knitting Machine
  • Air ProDouble Carriage Single System Computerized Flat Knitting Machine

Double Carriage Single System Computerized Flat Knitting Machine

Qiangsheng double carriage single system computerized flat knitting machine adopts digital technology to realize the knitting functions of turning needle, picking hole, hanging eye, non-dotted jacquard, four-level jacquard, bright stitch, dark stitch and other regular patterns. The features of quality Single carriage single system further improve the weaving efficiency and the variety of weaving forms. The following is an introduction to double carriage single system computerized flat knitting machine, we hope to help you better understand our products.

Model:QL-152M

Send Inquiry    PDF Download

Product Description

Qiangsheng as one of the leading double carriage single system computerized flat knitting machine manufacturers and suppliers in China. Over the years, we have always focused on the research in the field of double carriage single system computerized flat knitting machine. With rich experience and professional technology, we have our own brand in China and have achieved good response. Our products have covered China, Europe, Africa, South America, Argentina and other multinational fields, and established senior cooperative relations with many buyers. Double carriage single system computerized flat knitting machine, there are two models: with comb system and without comb system, by using digital technology, it could implement the stich transfer, jacquard, needle narrowing and other weaving functions, it can knil basic knitting(full needle, single side)the weft knitted fabric like cable stitch.



Double Carriage Single System Computerized Flat Knitting Machine Parameter:

Model

QL-152M

Gauge

7G、9G、12G、13G、14G、15G、16G

Carriage

Single carriage single system

Knitting Range

52,780,7100,'

Needle Bed

Milling type needle bed or insert type needle bed

Comb system

Zero finishing yarn comb system;regualar comb system

Knitting System

Single carriage single system

Knitting Speed

maximum speed is 1.8 m/s without load, with 128 sections of programming speed

Stitch Density

128 section electronic control, using subdivision technology; The stepping motor controls and adjusts the density, and the adjustable range is 0-650

Dynamic stitch

It is realized by high speed stepper motor, which supports the realization of multi-segment variable mesh control within a row of pattern, and the realization of a variety of fabric density in the same lineWeaving, rich weaving patterns.

Transfer

Not affected by the direction of the nose, minute knitting.

Racking System

Servo motor drive, shake 1/2 and 1/4 needle in any position; Maximum 2 inches on one side.

Quickly Turning

Intelligent switching braiding system improves machine weaving efficiency

Take-Up Device

128 sections of automatic control, time division adjustment, can be automatically identified according to the width of the pattern automatically adjust the tension, can meet a lot of local weavingThe pulling force requirement of the pattern makes the pulling force of the fabric evenly distributed and the strength is reliable.

Yarn feeder device

7G-9g adopts the roller feeding device to accurately control the tension of the yarn and ensure the consistency of the whole woven piece quality;

12G-16g adopts the yarn storage device to accurately control the tension of the yarn and ensure the consistency of the whole woven piece quality;

Safety Device

The whole machine is covered to reduce noise and dust, infrared safety device, emergency stop device, cut off power device, indicator light alarm device.

Stop Motion

Automatic stop for yarn breaking, yarn knot, cloth winding, firing pin. number of pieces completed, overload, program error, etc

Control System

Smart energy system: the screen uses LCD industrial display, touch screen graphical interface, transmission mode uses USB and network, can be used to store a large number of patternsDocuments. and can be used according to(he production needs at any time. Monitoring screen: it can display all kinds of working parameters and knitted mesh value, and it can be adjusted ai any time when the machine is running, which is convenient for operation and time saving to the greatest extent. Plate-making system and control system(software part)SH upgrade is convenient. Support a variety of flower format CNT. HCD, 000. elc. Support for multi-languageoperaiing versions(Chinese. English. Russian, and other languages)

Data Input

Input data through a USB flash drive or computer connection

Blackout Memory Function

Advanced CMOS technology is adopted to realize blackout memory and call recovery weaving functions.

Network Function

High-speed ETHERNET network theoretically enables unlimited computer connection, data uploading and sharing, and real-time monitoring.

Power Supply Unit

Voltage: AC 220V/380V frequency: 50HZ/60HZ Power: 1 .0KW

Size And Weight Of Machine

QL-152M: 2360*740* 1700MM Weight around: 750KG


Specificalions and Coonfigurations Should Be Subjected To The Contract.


Double Carriage Single System Computerized Flat Knitting Machine Application:

This applies to needle thread, spun silk, synthetic filament, wool, acrylic, blending yarn and other raw material, weaving sweaters, scarfs, hats and clothing accessories.
