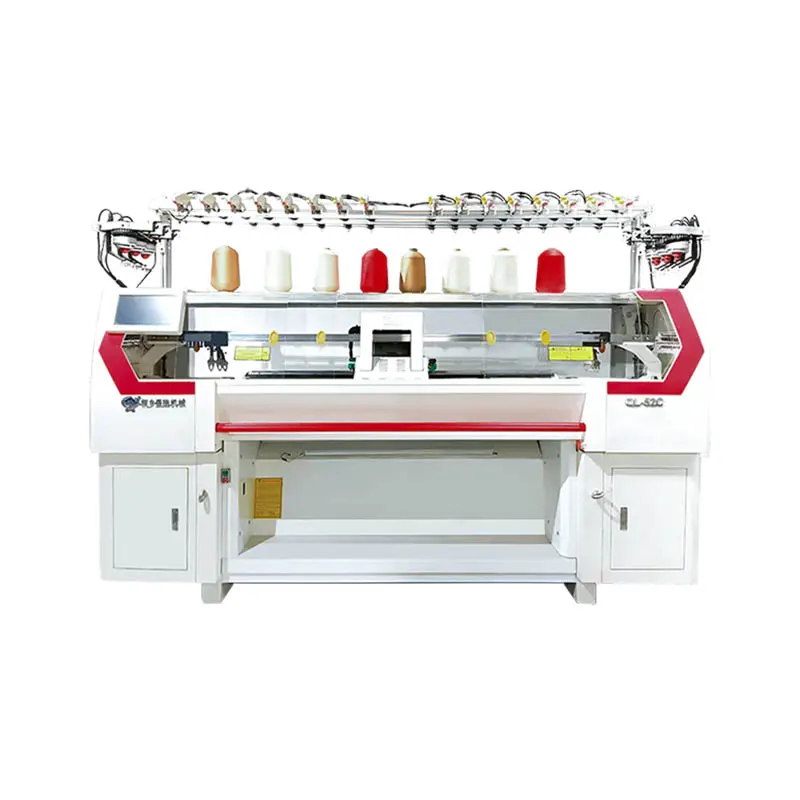

Signle Carriage Single-Double System Computerized Sweater Flat Knitting Machine

As the professional signle carriage single-double system computerized sweater flat knitting machine manufacture, Qiangsheng would like to provide you our products. Signle carriage single-double system computerized sweater flat knitting machine with digital technology, can make full patterns of transfer, pointel, tuck, intarsia, jacquard, double jersery plan, apparent shape, hidden shape, and other regular knitting pattern functions, before start production.

Model:QL-1S52M

Send Inquiry    PDF DownLoad

Product Description

Qiangsheng is one of the famous signle carriage single-double system computerized sweater flat knitting machine manufacturers and suppliers in China. Over the past 35 years, we have been focusing on the production and development of signle carriage single-double system computerized sweater flat knitting machine. With our rich professional experience and strong technical support, we have established a relatively complete marketing network and after-sales service system. After years of scientific research and development and market development, our products have covered China, Europe, Africa, South America, Argentina and other multinational fields, and is favored by domestic and foreign customers. The signle carriage single-double system computerized sweater flat knitting machine is suitable for making more complex patterns, which can realize the double system needle turning, and can take more yarn nozzle in the same line. The difference between single system and double system computer flat knitting machine is in the pattern, as long as the pattern can be woven by the single system, the double system can weave, while the relatively complex pattern on the single system does not have the speed of the double system.



Signle Carriage Single-Double System Computerized Sweater Flat Knitting Machine Parameter:

Model

QL-1S52M

Gauge

7G、9G、12G、13G、14G、15G、16G

Carriage

Single carriage single-double system

Knitting Range

44'752780*7100M

Comb System

Zero finishing yarn comb system;regualar comb system

Needle Bed

Milling type needle bed or insert type needle bed

Knitting System

Single carriage single-double system, use of digital technology to achieve the horizontal machine needle, pick hole.lifting eye. no dotted line liftFlower. siping jacquard, open stitch, dark stitch and other regular pattern weaving functions.

Knitting Speed

maximum speed is 1.8 m/s without load, with 128 sections of programming speed

Stitch Density

128 section electronic control, using subdivision technology; The stepping motor controls and adjusts the density.and the adjustable range is 0-650

Transfer

Not affected by the direction of the nose.

Racking System

Servo motor drive, shake 1/2 and 1/4 needle in any position; Maximum 2 inches on one side.

Quickly Turning

Intelligent switching braiding system improves machine weaving efficiency

Take-Up Device

128 sections of automatic control, time division adjustment, can be automatically identified according to the width of the pattern automatically adjust the tension, can meet a lot of local weavingThe pulling force requirement of the pattern makes the pulling force of the fabric evenly distributed and the strength is reliable.

The Yarn Device

7G-9g adopts the roller feeding device to accurately control the tension of the yarn and ensure the consistency of the whole woven piece quality; I2G-I6g adopts the yarn storage device to accurately control the tension of the yarn and ensure the consistency of the whole woven piece quality:

Safety Device

The whole machine is covered to reduce noise and dust, infrared safety device, emergency stop device, cut off power device, indicator light alarm device.

Stop Motion

Automatic stop for yam breaking, yam knot, cloth winding, firing pin. number of pieces completed, overload, program error, etc

Control System

the screen uses LCD industrial display, touch screen graphical interface, transmission mode uses USB and network, can be used to store a large number of patiern files, and can be called out according to production needs a(any time. Monitoring screen: it can display all kinds of working parameters and knitted mesh value, and it can be adjusted at any time when the machine is running, which is convenient for operation and time saving to the greatest extent. Plate-making system and control system(software part)SH upgrade is convenient. Support a variety of flower format CNT. HCD. 000. etc. Support for multi-language operating versions(Chinese. English, Russian, and other languages)

Data Input

Input data through a usb flash drive or computer connection

Blackout Memory Function

Advanced CMOS technology is adopted to realize blackout memory and call recovery weaving functions.

Network Function

High-speed ETHERNET network theoretically enables unlimited computer connection, data uploading and sharing, and real-time monitoring.

Power Supply Unit

Voltage: AC 220V/380V frequency: 5OHZ/6OHZ Power: 1.5KW

Size And Weight Of Machine

QL-1S52M: 2550*720* 1700MM Weight around:750KG


Spccificalions and Coonfigurations Should Be Subjected To The Contracl.
