Luxury Model With Double Tuck

High quality luxury model with double tuck is offered by China manufacturer Qiangsheng. The system software has the function of stitchs step by step and can be compatible with most pattern weaving of double and triple system.

Model:LUXURY MODEL WITH DOUBLE TUCK QL-1S52M QL- 1S60M

Send Inquiry

Product Description

It has the function of simultaneous weaving tucks with single- port input, and realizes the function of turning before and after single - port input.

The system software has the function of stitchs step by step and can be compatible with most pattern weaving of double and triple system.

Simple operation, saving time, less investment, fast return. Qianglong technology wish to work with you to win the future together.

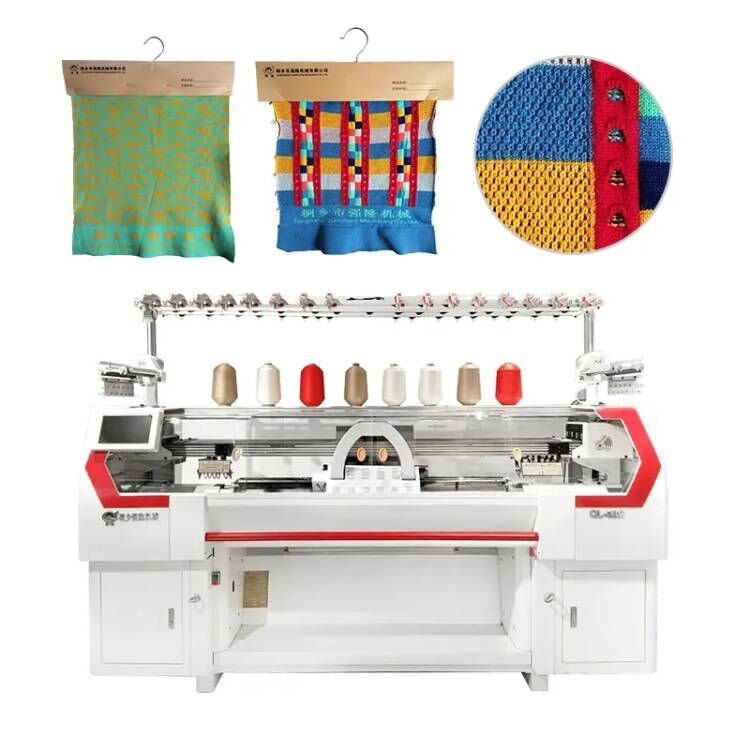

Luxury Model With Double Tuck


Product Specification

Model

QL-1S52M QL-1S60M

Gauge

5G、7G、9G、12G、13G、14G、 15G、16G

Carriage

Single-double system

Knitting range

44"/52"/60"/80"

Comb system

Zero finishing yarn comb system; regualar comb system

Needle bed

Milling type needle bed (standard) or Insert type needle bed (optional).

Knitting system

Single-double system, use of digital technology to achieve the horizontal machine needle, pick hole,lifting eye, no dotted line liftFlower, siping jacquard, open stitch, dark stitch and other regular pattern weaving functions.

Knitting speed

Maximum speed is 1.8 m/s without load, with 128 sections of programming speed.

Stitch density

128 Segment electronic control, using subdivision technology; stepper motor control to adjust the density, adjustable range O~650

Dynamic stitch

Maximum speed is 1.8 m/s without load, with 128 sections of programming speed.

Transfer

Not affected by the direction of the carriage

Racking system

Servo motor driven,shakes 1/2 and 1/4 needle in any position; maximum 2 inches on one side.

Quickly turning

Intelligent switching braiding system improves machine weaving efficiency

Take-up device

128 section automatic control, time division adjustment, according to the width of the pattern automatic identification automatic adjustment tension, can meet many local weave pattern tension requirements, so that the fabric tension distribution uniform, reliable strength.

The yarn device

7G-9g Adopts the roller feeding device to accurately control the tension of the yarn and ensure the consistency of the whole woven piece quality; 12G-16g adopts the yarn storage device to accurately control the tension of the yarn and ensure the consistency of the whole woven piece quality.

Safety device

The whole machine is covered to reduce noise and dust, infrared safety device, emergency stop device, cut off power device, indicator light alarm device.

Stop motion

Automatic stop for yarn breaking, yarn knot, cloth winding, firing pin, number of pieces completed, overload, program error, etc

Control system

The screen uses LCD industrial display, touch screen graphical interface, transmission mode uses USB and network, can be used to store a large number of pattern files, and can be called out according to production needs at any time. Monitoring screen: it can display all kinds of working parameters and knitted mesh value, and it can be adjusted at any time when the machine is running, which is convenient for operation and time saving to the greatest extent. Plate-making system and control system (software part) SH upgrade is convenient. Support a variety of flower format CNT, HCD, 000, etc.

Support for multi-language operating versions (Chinese, English, Russian, and other languages)

Data input

Through a USB drive or computer connection.

Blackout memory function

Advanced CMOS technology is used to realize power failure memory and incoming call recovery weaving functions.

Network function

High-speed ETHERNET network theoretically enables unlimited computer connection, data uploading and sharing, and real-time monitoring.

Size and weight of machine

QLC-M244SQ: 2400* 780* 1900MM; Weight around: 750KGS

Specification and configurations should be subjected to the contract with customer
